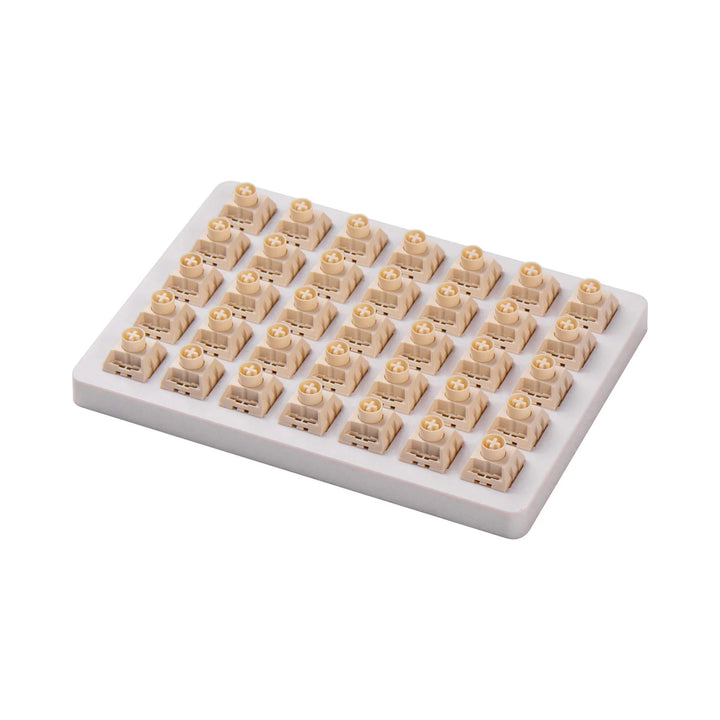

Kailh Box Switch-Cream (35 pcs)
HK$139
Description
POM Material Self Lubrication

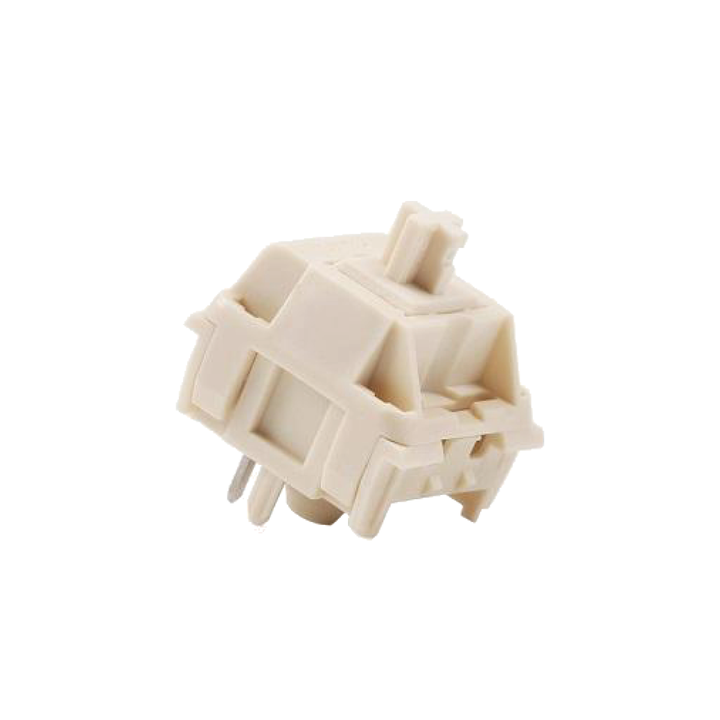

The Kailh Box Cream Linear Switches are linear switches that are similar to the original cream switch. However, it features a housing and stem that is made of self-lubricating POM material to deliver a smooth and stable fingertip feel.
Waterproof & Dustproof Stem
The stem with dust wall design protects the inner structure of the switch from water and dust. It also ensures the switch’s operating lifespan to 50 million.
Innovative “Box” Structure
The innovative sealed “Box” structure provides extra protection for the contact plate and leaf.
5-Pin Scheme
It adopts a 5-Pin scheme to provide better stability and superior keyboard-compatible performance for this switch.
Product Structure
Technical Data
Box Cream Switch
| Type | Linear |
|---|---|
| Operation Force | 45±10 gf |
| Pre-travel | 2.0±0.5 mm |
| Return Force | ≥15 gf |
| Total Travel | 4.0±0.3 mm |
| Sound Level | Low |
| Operation Life | Up to 50M cycles |
| Suitable For | Gaming/office |
Product Spec
| Product Name | Box Cream Switch |
|---|---|
| Stem | POM |
| Top Housing | POM |
| Bottom Housing | POM |
| Contact | Composite gold |
| Spring | Spring steel |
| Protecting Cover | Nylon |
| Slider | POM |
| Pins | 5-Pin |
| Factory Pre-lubed | No |
| SMD LED Support | Yes |
Product Code:
Z56
