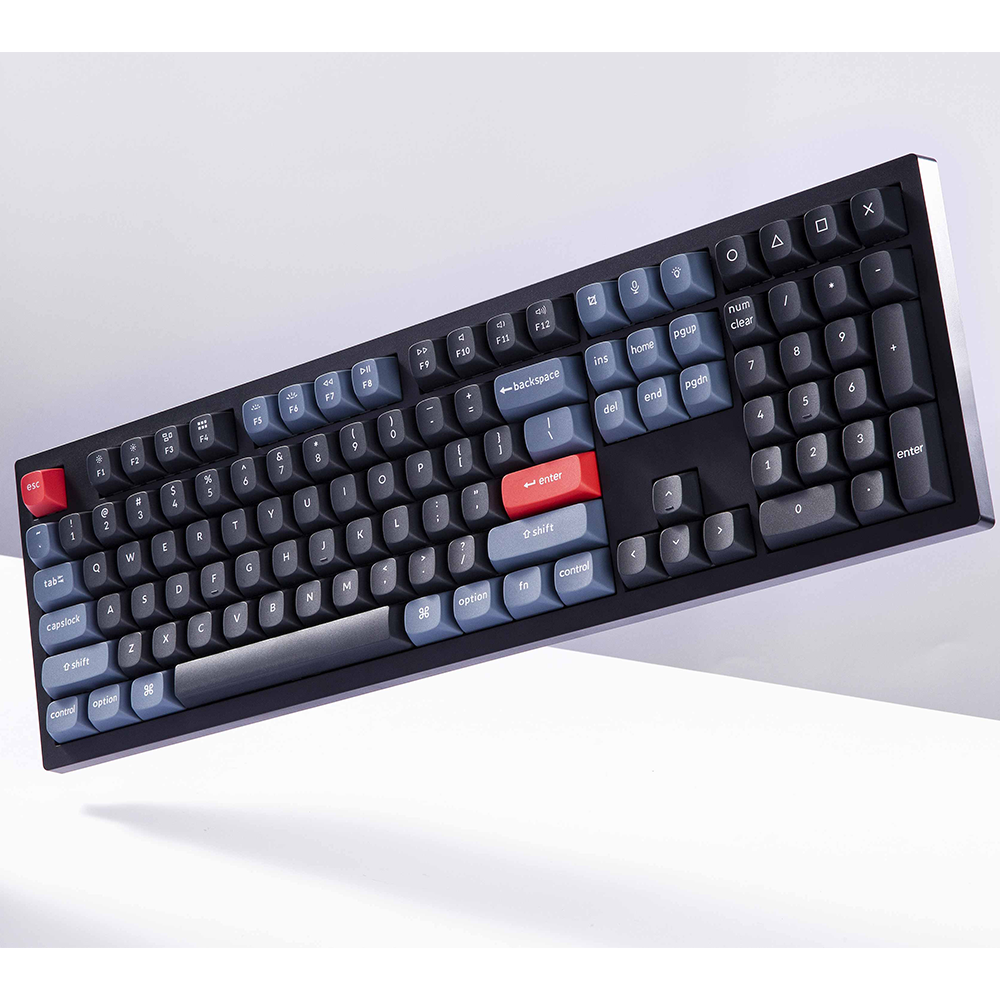

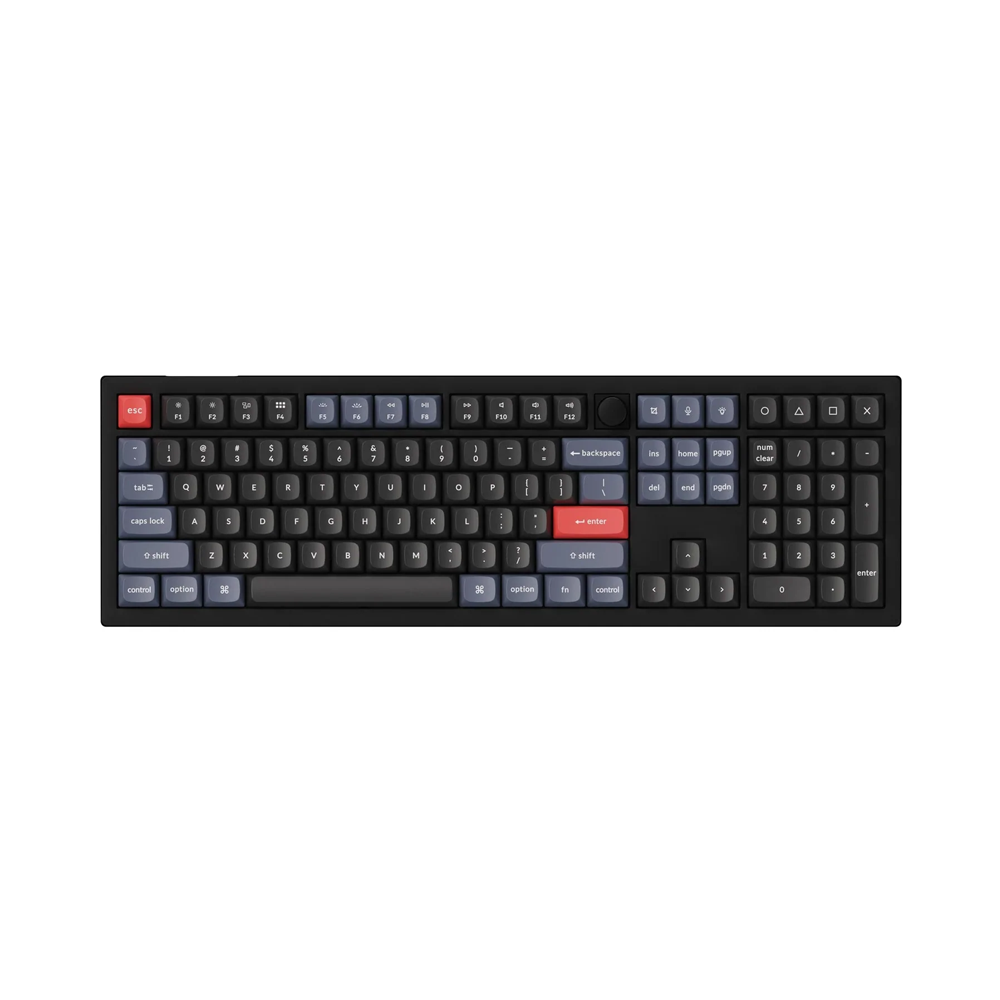

Keychron V6 QMK 客製化機械鍵盤
V6 is a full-sized custom mechanical keyboard with QMK/VIA support and many premium designs like double-shot PBT keycaps, screw-in stabs, etc. It will meet your diverse needs and bring you excellent typing comfort!
Frosted Black Version (Translucent）
Carbon Black Version (Non-transparent）
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.
Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V6 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the V6's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Get the V6 keymap working on VIA
Since the VIA code for the V6 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V6 keymap.
To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V6 keymap working on VIA.
V6 Keymap JSON Files
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V6 also supports third-party screw-in PCB stabilizers.
|Front Height||19.44 mm (without keycaps)|
|Back Height||26.83 mm (without keycaps)|
|Feet Height||2.4 mm|
|Angle||3.5° / 7.05° / 9.52°|
|Weight||1350 ± 10 g (Fully Assembled Version)|
|Body Material||ABS Plastic|
|Polling Rate||1000 Hz|
|Mount Style||Tray Mount Design|
|Keycaps (Fully Assembled Version)||Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)|
|MCU||Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)|
|Switches||Keychron K Pro (Fully Assembled Version)|
|Backlight||South-facing RGB LED
|Switch Support||Hot-swappable (5 pin & 3 pin)|
|Stabs||Screw-in PCB stabs|
|Cable||Type-C cable + Type-A to Type-C adapter|
|Operating Environment||-10℃ to 50℃|
